The ESL will automatically and regularly switch the page and display the promotion content to meet the needs of daily marketing activities, especially frequent price changes.
Install ZKONG large-size electronic shelf labels in shelves, central areas and entrances to ensure the coverage and exposure of brand advertising in shops.
The inventory data on the electronic shelf label screen will be updated simultaneously with the inventory system when the user's management system is connected with the ZKONG cloud ESL system.
When the number of products on the shelf is lower than the set quantity, the LED lights on electronic shelf label will flash to inform the staff.
The LED on the ESL will flash to provide the product position and a product picking route for staffs.
When consumers click the product on the app, the app will provide the best route from the consumer's current location to the located product
The customers can enter the online store and comment on the app easily when they scan the QR code on the electronic shelf label or hold the smart phone close to the ESL
Combine the ZKONG cloud ESLs with the shelf facilitate to manage the shelf, allowing staff to display goods in a quick, efficient and standardized manner.
The ZKONG ESL improve the overall visual impact of the store, which also enhance the brand image.
Size: 44.5*35.9*12.1mm
Screen: 27.51*27.51mm
Operate temperature: 0~40℃
Battery: 600mAh
Size: 71*34.7*9.5mm
Screen: 48.55*23.7 mm
Operate temperature: 0~40℃
Battery: 600mAh
Size: 70*34.5*12.1mm
Screen: 48.55*23.7 mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 77.9*42.3*11.8mm
Screen: 52.1*29.6mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 83*41*12.1mm
Screen: 60.09*30.7 mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 85*41*7.5mm
Screen: 60.09*30.7
Operate temperature: 0~40℃
Battery: 600mAh
Size: 90*41*12.1mm
Screen: 66.9×29.06 mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 92*41.5*7.5mm
Screen: 66.9×29.06 mm
Operate temperature: 0~40℃
Battery: 600mAh
Size: 102*44*8.5mm
Screen: 70.4*29.568mm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 109*89.1*10.4mm
Screen: 90.112*64.768mm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 135.4*110*9mm
Screen: 114.9*85.8mm
Operate temperature: 0°~40℃
Battery: 2400mAh
Color: Multi color
Size: 176.8*124.3*13mm
Screen: 160*96mm
Operate temperature: 0°~40℃
Battery: 1800mAh
Size: 200.1*137.1*9.5mm
Screen: 180.224*101.376mm
Operate temperature: 0°~40℃
Battery: 1800mAh
Size: 298.3*228*9mm
Screen: 270*203mm
Operate temperature: 0°~40℃
Battery: 3600mAh
Color: Full color
Customized Colorful ESL tags are electronic shelf labels that can be personalized to match the branding and design preferences of retailers. With a wide range of color options and customizable layouts, these ESL tags allow retailers to create unique and visually appealing displays. They enhance brand recognition, highlight promotions, and create a differentiated shopping experience.
1. suitable for environment which requires perfect display of products' details
2. large-size versions perfectly for poster display, promotion notification and other scenarios
Size: 44.2*35.9*12.1mm
Screen: 27*27mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 52.5*35.9*12.1mm
Screen: 36.06*27.05mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 70*34.5*12.1mm
Screen: 48.55*23.7
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 83*41*12.1mm
Screen: 60.09*30.7mm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 90*41*12.1mm
Screen: 66.9*29.1mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 103.6*57*11.2mm
Screen: 81.54*47.04mm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 104.8*87*12.8mm
Screen: 84.8*63.6mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 135.4*110*9mm
Screen: 118.8*88.2mm
Operate temperature: 0°~40℃
Battery: 2400mAh
Size: 180.8*121.8*9mm
Screen: 163.2*97.9mm
Operate temperature: 0°~40℃
Battery: 2400mAh
Size: 215.5*173*9.5mm
Screen: 215.52*143.68mm
Operate temperature: 0°~40℃
Battery: 3600mAh
Size: 266.3*190*9mm
Screen: 244*164mm
Operate temperature: 0°~40℃
Battery: 3600mAh
Size: 298.3*225.5*10.3mm
Screen: 275.52*195.16mm
Operate temperature: 0°~40℃
Battery: 3600mAh
1. Centralized Data Management: Retailers input and manage product information, including prices, descriptions, and promotions, through a centralized iot cloud platform. This platform serves as the command center for all the labels throughout the store.
2. Wireless Communication: The electronic shelf labels communicate with the central system using wireless technology, such as RFID (Radio-Frequency Identification), NFC (Near Field Communication), or Wi-Fi. This connection allows them to receive updates instantly without the need for physical wiring.
3. E-Ink Display Technology: ZKONG electronic shelf label, is known for the low power consumption and high visibility, even under direct sunlight. The E-Ink display shows the product information sent from the central system. Because E-Ink displays only use power when updating the information, the labels have a long battery life.
4. Real-Time Updates: Whenever there’s a change in pricing, promotions, or product information in the central system, it is immediately pushed to the relevant electronic price tags in grocery stores. This ensures that the information displayed is always current, reducing pricing errors and enhancing customer trust.
5. Scalability and Flexibility: These digital price tags for grocery stores can easily be added, removed, or repositioned within the store as needed, providing retailers with the flexibility to change layouts or update displays without worrying about the logistical challenges of traditional paper labels.
For boutique stores or pop-up shops with limited space and a need for flexible, easy-to-update pricing solutions, ZKONG Valley Lightweight Store Shelf Labels provide an ideal solution. Their lightweight design and wireless update capability make them perfect for dynamic retail environments where product placements and promotions change frequently, ensuring that customers always have access to the most current information.
Size: 54.2*36.9*9.5mm
Screen: 36.06*27.05mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 71*34.7*9.5mm
Screen: 48.55*23.7mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 71*34.7*6.6mm
Screen: 48.55*23.7mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 67.9*37*10mm
Screen: 48.1*26mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 84.2*40.5*7.5mm
Screen: 60.09*30.7mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 84.2*40.5*4.5mm
Screen: 60.09*30.7mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 92*41.5*7.5mm
Screen: 66.9*29.1mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 92*41.5*4.5mm
Screen: 66.9*29.1mm
Operate temperature: 0°~40℃
Battery: 600mAh
Size: 101.5*50*11.8mm
Screen: 79.68*38.18mmm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 103.6*87*10.3mm
Screen: 84.8*63.6mm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 129.7*41.3*9mm
Screen: 105.44*30.7mm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 132*109*13mm
Screen: 118.78*88.22mm
Operate temperature: 0~40℃
Battery: 2400mAh (1*4CR2450)
Size: 176.8*124.3*13mm
Screen: 163.2*97.92mm
Operate temperature: 0°~40℃
Battery: 2400mAh (1*4CR2450) 10-year battery life
Size: 217*169.7*13.5mm
Screen: 201.6*141.12mm
Operate temperature: 0°~40℃
Battery: 3600mAh (1*6CR2450) 10-year battery life
Manufacturing Precision: The ultra-thin profile is a result of precise engineering and manufacturing processes that minimize the thickness of each component, from the electronic circuitry to the display panel and the casing. This requires a high degree of precision to ensure that the device remains robust and functional despite its slimness.
Material Innovation: The use of innovative materials that offer strength and durability without adding bulk is crucial. These materials must also be compatible with the e-ink display technology and wireless communication components used in the labels.
E-ink Display Technology: The ESLs utilize e-ink technology for digital shelf tags, which is inherently thin and light compared to traditional LCD or LED screens. E-ink displays do not require backlighting, which further reduces the thickness and weight of the device.
Impact on Retail Environment: The ultra-thin design of the ZKONG Blade digital shelf price tags allows them to blend seamlessly into the retail shelving, avoiding any obstruction to the view of the products or interference with the shopping experience. This sleek appearance enhances the aesthetic appeal of the store while ensuring that the labels are highly functional and accessible.
In a high-end retail environment where aesthetics are as important as functionality, ZKONG Blade Ultra Thin ESLs blend seamlessly into the store design, offering an elegant solution for displaying product information without detracting from the overall shopping experience. Their ultra-thin profile and high-resolution display support dynamic pricing and detailed product descriptions, elevating the customer experience by providing valuable information in a visually appealing format.
Size: 44.5*35.9*13.7mm
Screen: 27*27mm
Operate temperature: 0~40℃
Battery: 600mAh
Size: 70*36*14.3mm
Screen: 48.6*23.7mm
Operate temperature: 0~40℃
Battery: 1200mAh

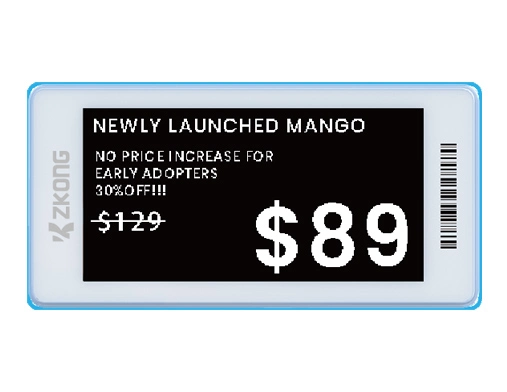

Size: 70*36*14.3mm
Screen: 48.6*23.7mm
Operate temperature: -25°~25℃
Battery: 1000mAh
Size: 83*41*14.3mm
Screen: 60.1*30.7mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 83*41*14.3mm
Screen: 60.1*30.7mm
Operate temperature: -25~25℃
Battery: 1000mAh
Size: 77.71*50*14.3mm
Screen: 57.3*38.2mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 90.41*41*14.3mm
Screen: 66.9*29.1mm
Operate temperature: 0~40℃
Battery: 1200mAh
Size: 104*56.4*11.2mm
Screen: 81.54*47.04mm
Operate temperature: 0°~40℃
Battery: 1200mAh
Size: 215.7*206.8*15mm
Screen: 179.4*81.54mm
Operate temperature: 0°~40℃
Battery: 4800mAh
Color Support: Black White
One of the primary features that differentiate ZKONG Shield Retail Electronic Shelf Labels is their exceptional durability. Designed to endure the challenging conditions of retail settings, these digital retail price tags are equipped with a protective casing that shields them from dust, moisture, and physical damage. This level of protection ensures that the labels remain operational and maintain their visual clarity even after being handled by numerous customers and staff, or exposed to less-than-ideal environmental conditions. The durability of ZKONG Shield Retail Electronic Shelf Labels translates into lower maintenance costs and a longer lifespan, offering a more reliable and cost-effective solution for retailers.
Another standout feature of ZKONG Shield Retail Electronic Shelf Labels is their advanced connectivity. Utilizing state-of-the-art wireless communication technology, these labels can seamlessly connect to a store’s central management system, enabling real-time updates of product information, pricing, and promotions. This capability ensures that the information displayed is always accurate and up-to-date, which is crucial for maintaining customer trust and satisfaction. The ease of integration with existing retail management systems further enhances the appeal of ZKONG Shield Retail Electronic Shelf Labels, making them a versatile choice for a wide range of retail applications.
Energy efficiency is a critical consideration in today’s retail environment, and ZKONG Shield Retail Electronic Shelf Labels excel in this area as well. By employing e-ink display technology, these labels consume power only when updating information, significantly reducing energy usage compared to traditional electronic displays. The extended battery life not only lowers operational costs by minimizing the need for frequent battery replacements but also aligns with sustainability goals by reducing the environmental impact associated with energy consumption and electronic waste.
In a bustling supermarket where products are frequently handled and environmental conditions vary, ZKONG Shield Retail Store Shelf Labels offer the durability and robustness needed to withstand such challenges, ensuring that product information remains clear and accessible. Their advanced connectivity also allows for real-time pricing updates, crucial for promotional events or when adjusting prices to match competitors, enhancing operational efficiency and customer satisfaction.
ZKONG Electronic Price Labels - Boost Efficiency & Accuracy
Experience the future of retail with ZKONG’s electronic price labels. Real-time updates and easy integration.
ZKONG has 18 years of experience in the IoT wireless communication industry and specializes in ESL and LCD smart hardware for the new retail sector. With over 220 domestic and international patents, ZKONG continuously expands its global business, establishing professional localized teams in North America, Hong Kong, Japan, and Europe to provide industry-leading electronic shelf label products to customers.
ZKONG offers over 50 models of electronic price labels, ensuring flexible use in new retail, smart office, logistics, and warehousing environments. Our products are renowned for their high-definition display, instant price updates, and long-lasting battery life. ZKONG electronic price labels feature e-ink screens, providing high-definition display quality. The smart pricing feature enables updates of prices, QR codes, and product images within 3 seconds. The 5-10 year long battery life ensures reliable long-term performance.
ZKONG possesses a self-owned manufacturing base of over 40,000㎡, with an annual production capacity exceeding 50 million units, effortlessly meeting global market demands for electronic price labels. Our in-house production lines allow ZKONG to offer any level of product customization, fulfilling flexible customer needs and providing cost-effective finished products. Utilizing the MES + ERP digital management system, ZKONG can precisely track each part on the production line, ensuring the quality of every component leaving our facility.
ZKONG provides tailored software and hardware product solutions to meet each customer's specific needs. The ZKONG cloud platform offers open interfaces, supporting various types of ERP, API, and customized development for specific requirements, ensuring efficient data operation within the same system. The platform features a visual design, allowing for highly customizable screen templates without restrictions on content format or modification frequency, enabling immediate use after adjustments. It also supports personalized customization of product shells, frames, colors, and corporate logos, creating exclusive electronic price labels tailored to your brand image and products.
